Mombasa Old Town Swahili Conservation

01Design Brief

A mixed-use development accommodating retail shops, parking space, restaurant, office spaces and residential units was needed on two empty pieces of land in Mombasa Old Town. Of crucial importance was incorporating Swahili Architectural Traditions in this development to the satisfaction of the National Museums of Kenya. A one week long fieldwork was done in the neighbourhood to investigate Swahili Architectural Constants which were then incorporated in the design.

02Reflection

Architectural Conservation is not about freezing a culture in time for the sake of tourism, but preserving its soul as the world changes. In this project, traditions that were constrained by technology were enhanced using modern building methods like the use of concrete and steel.
— Japheth Cheruiyot

033D Views

6 drawings

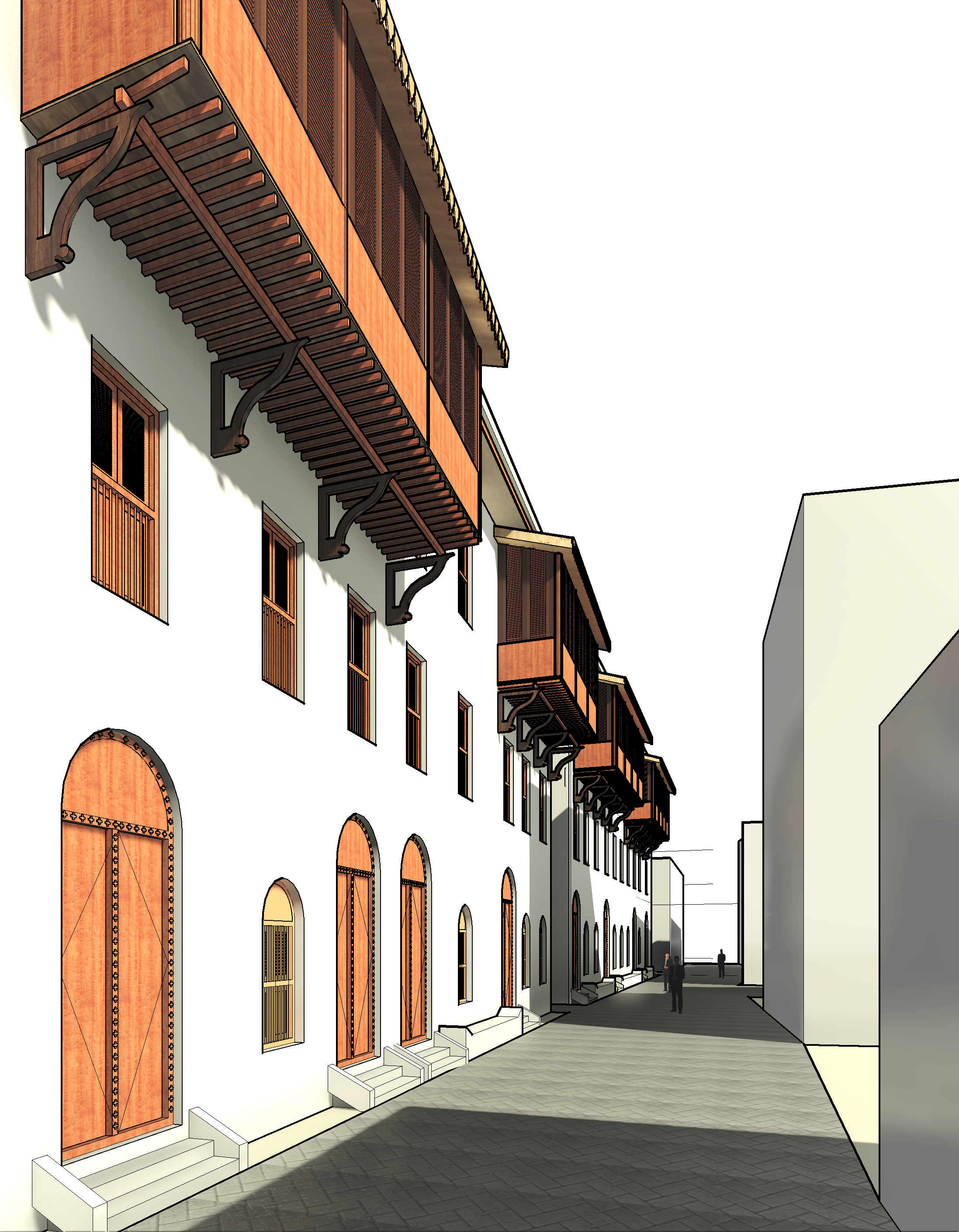

View from Ndia Kuu — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 01View from Ndia Kuu

View from Thika Street - Render — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 02View from Thika Street - Render

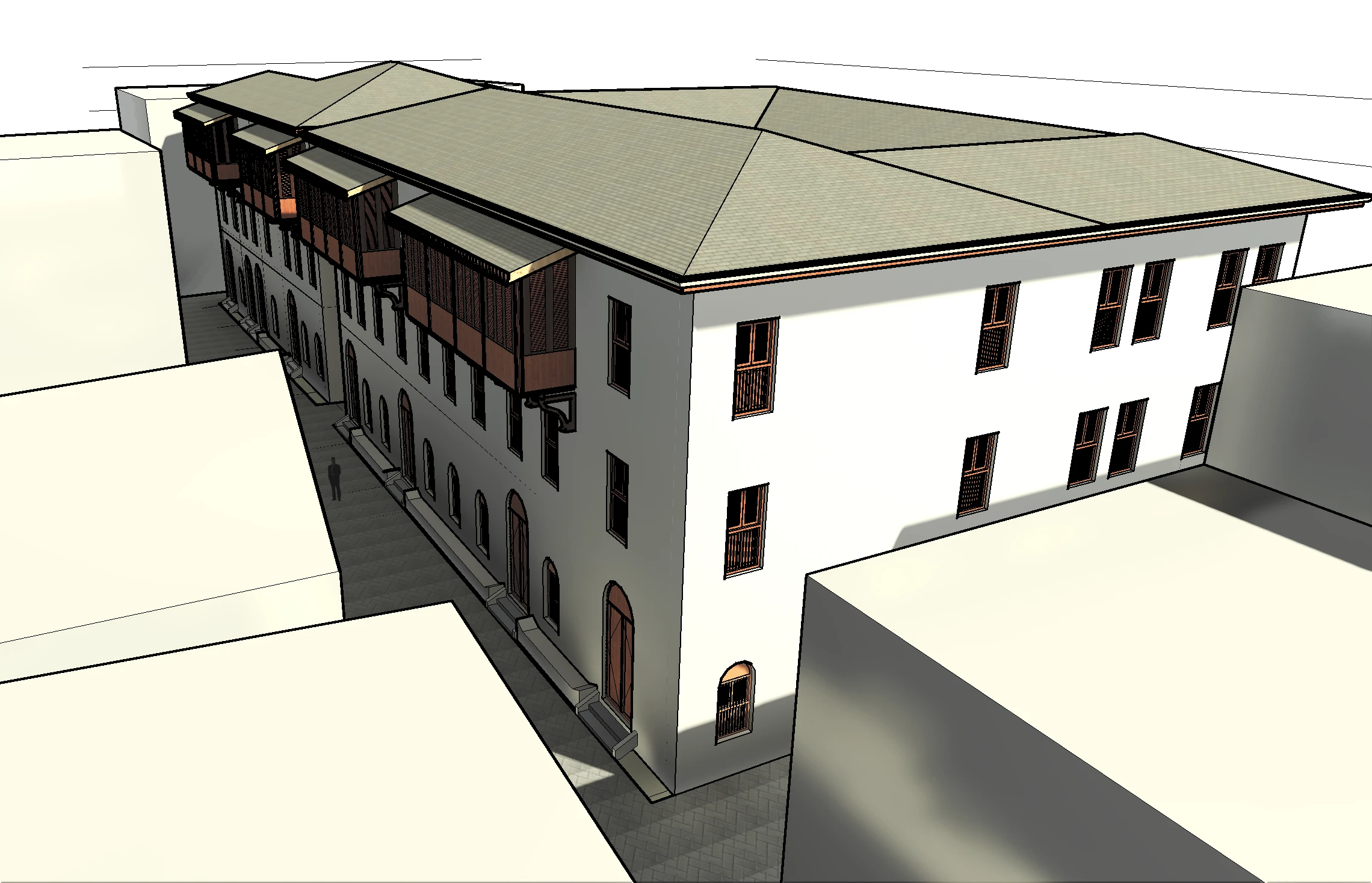

Aerial 3D view — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 03Aerial 3D view

View of Outdoor Restaurant — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 05View of Outdoor Restaurant

View from Thika Street — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 06View from Thika Street

04Design Development

18 drawings

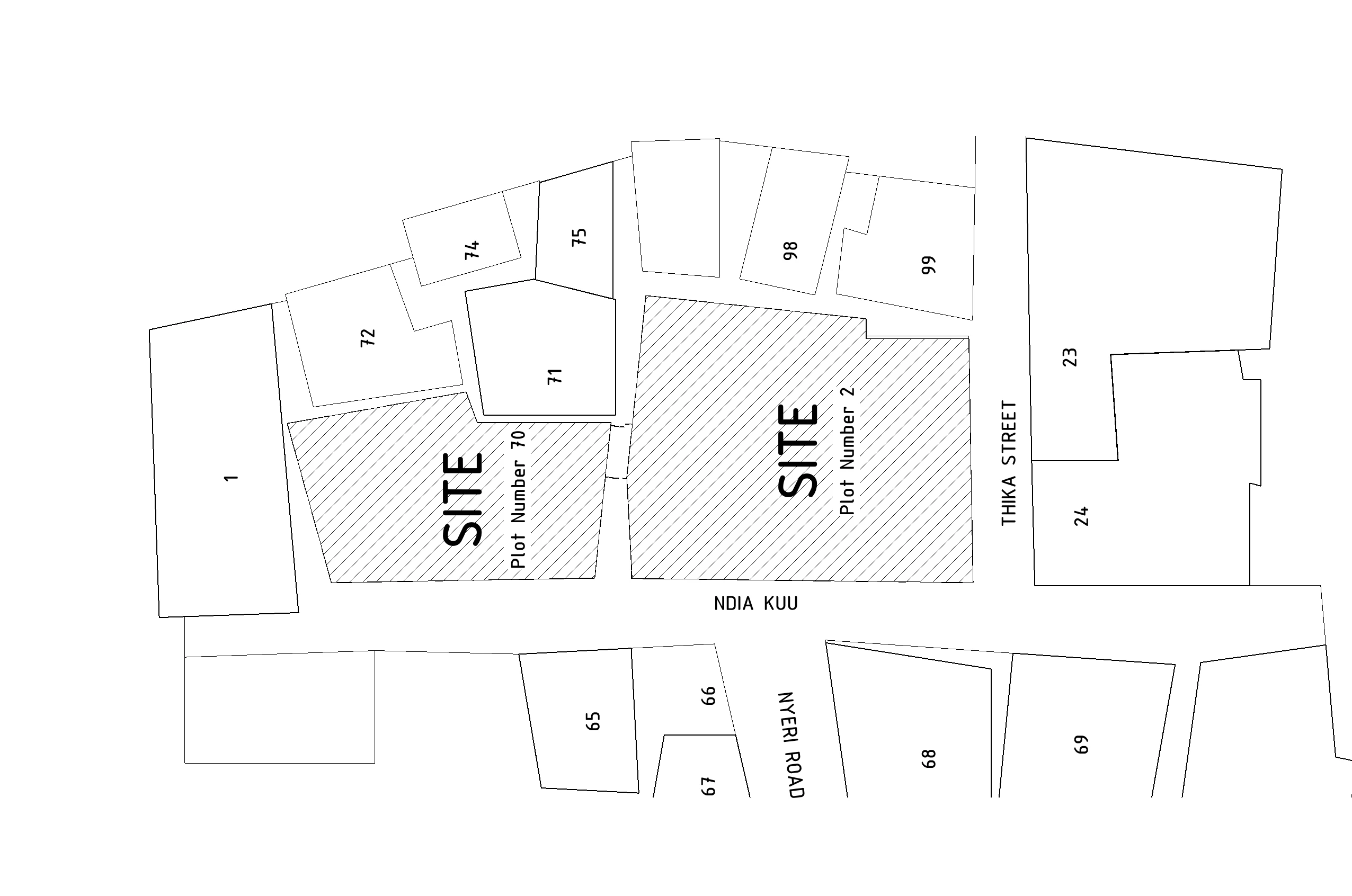

Location Plan — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 07Location Plan

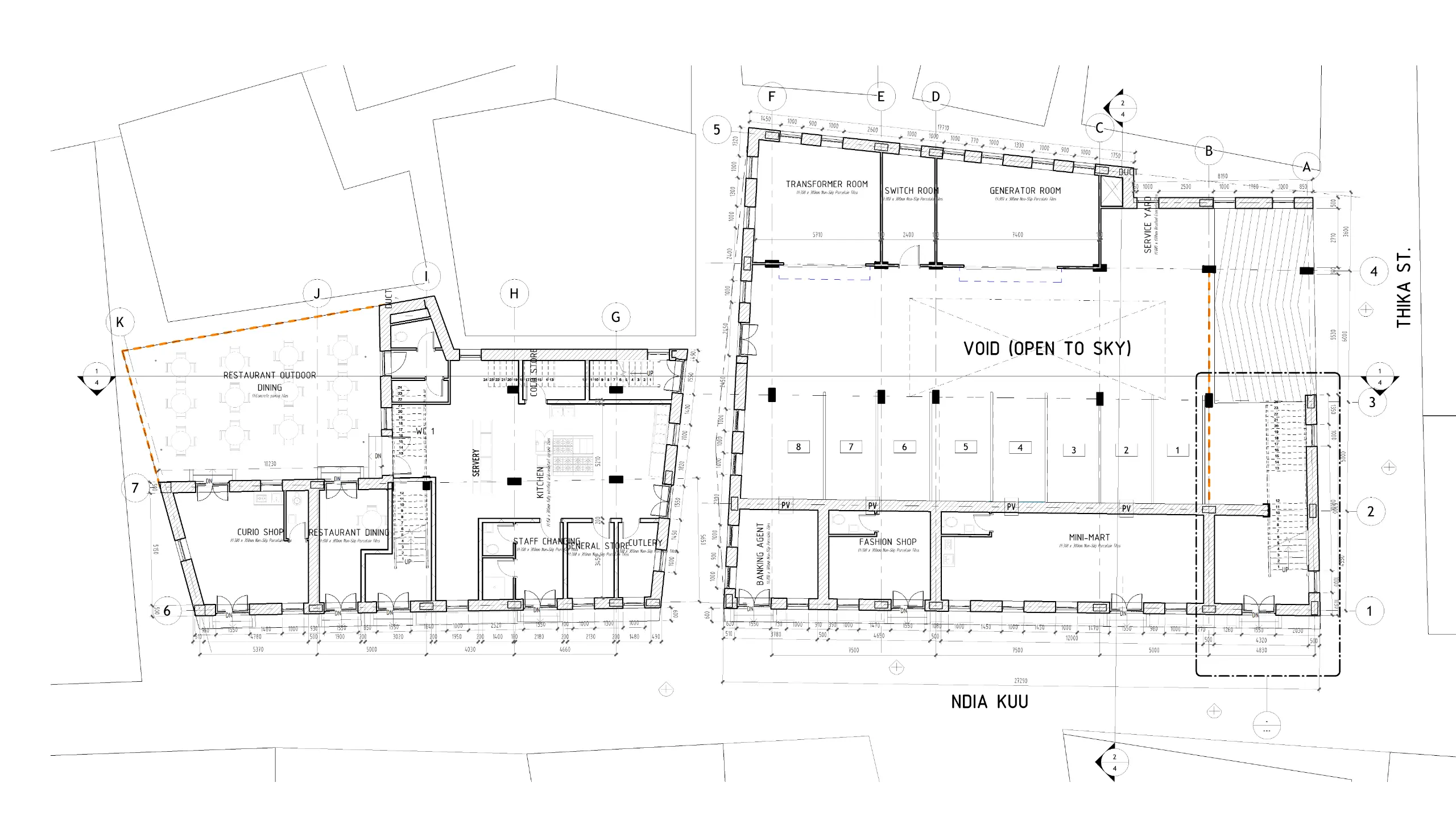

Ground Floor Plan — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 08Ground Floor Plan

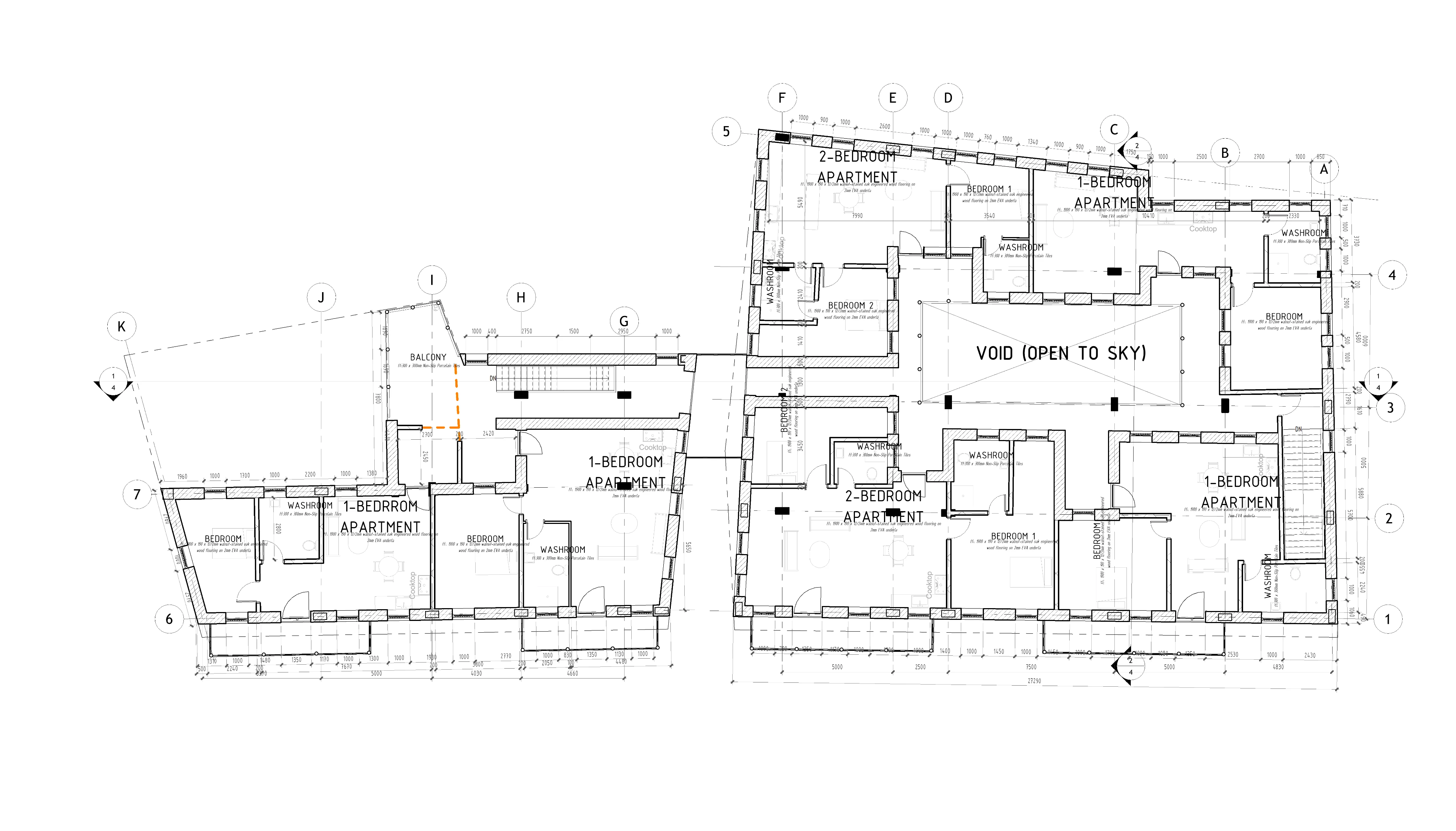

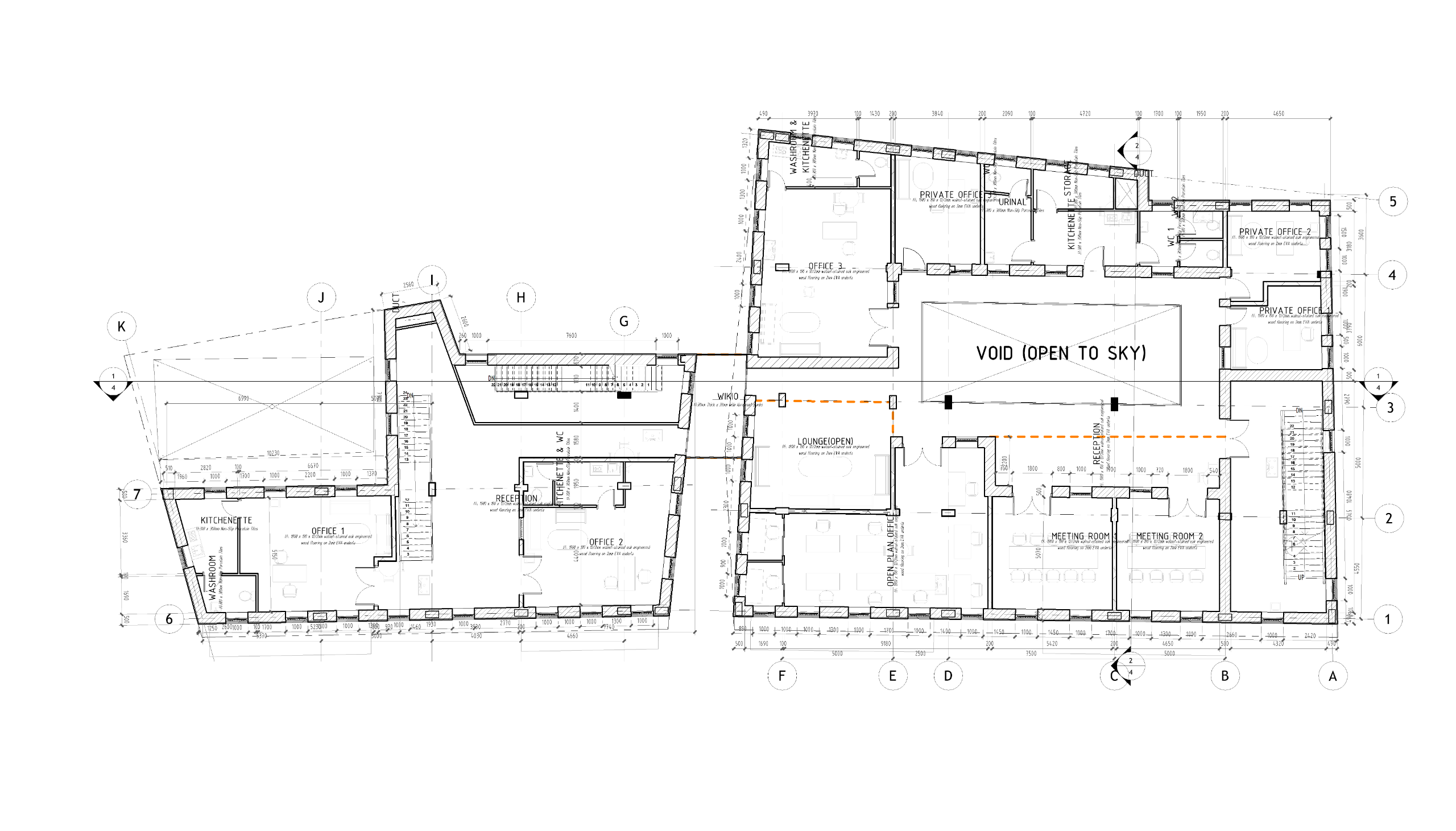

First floor plan — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 09First floor plan

Second Floor Plan — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 10Second Floor Plan

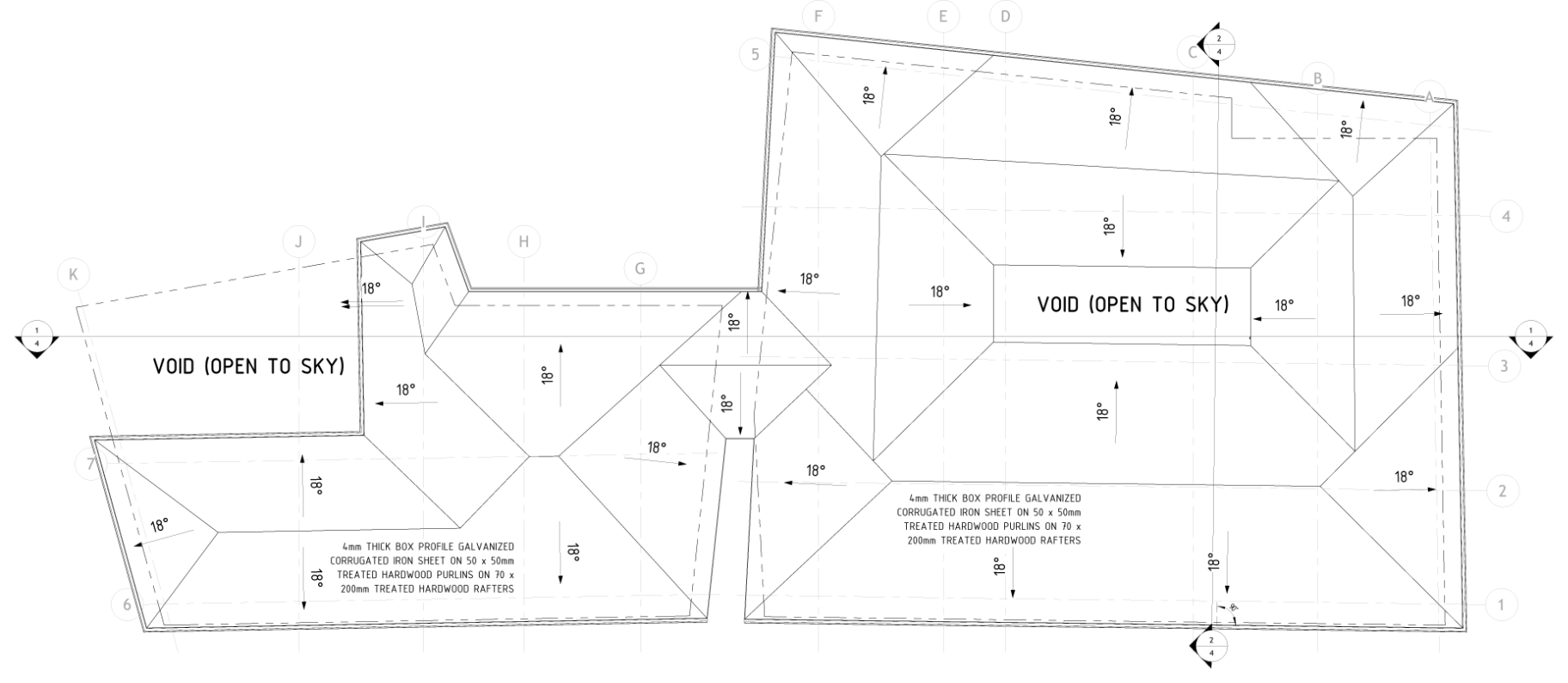

Roof Plan — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 11Roof Plan

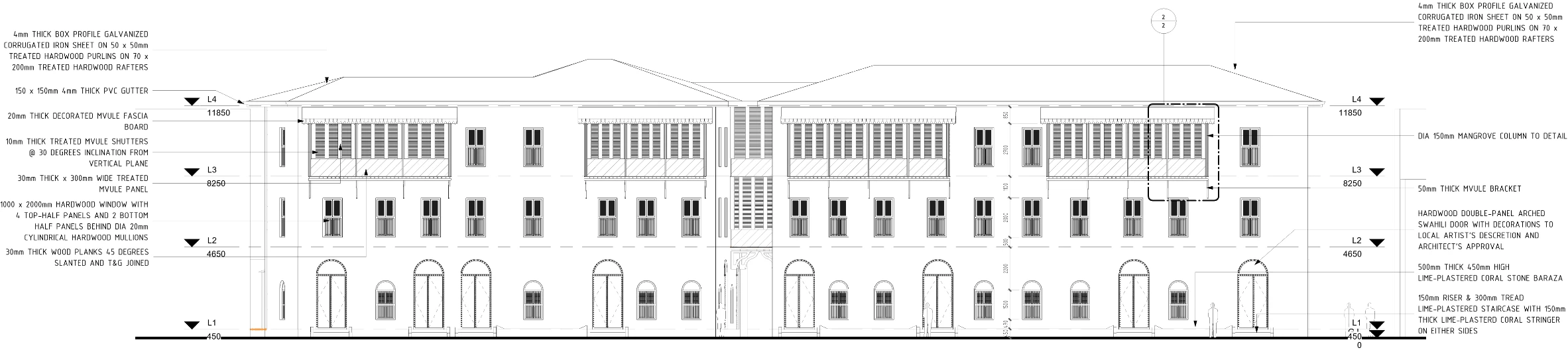

Ndia Kuu Elevation — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 12Ndia Kuu Elevation

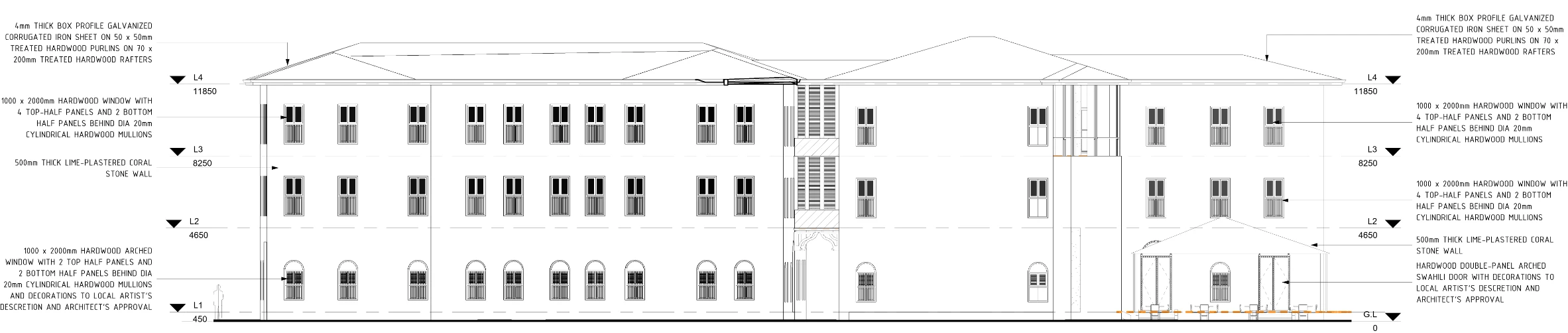

Rear Elevation — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 13Rear Elevation

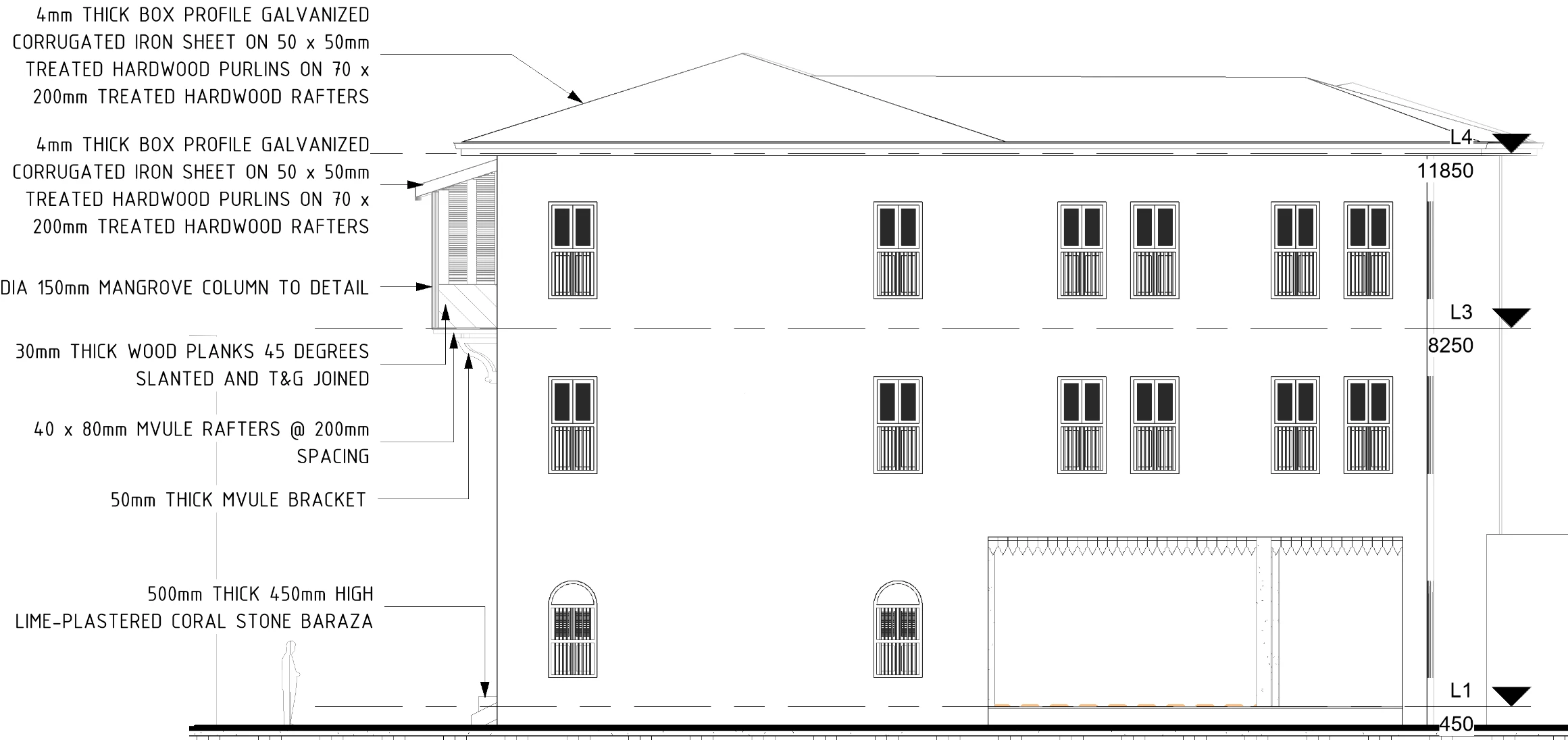

Thika Street Elevation — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 14Thika Street Elevation

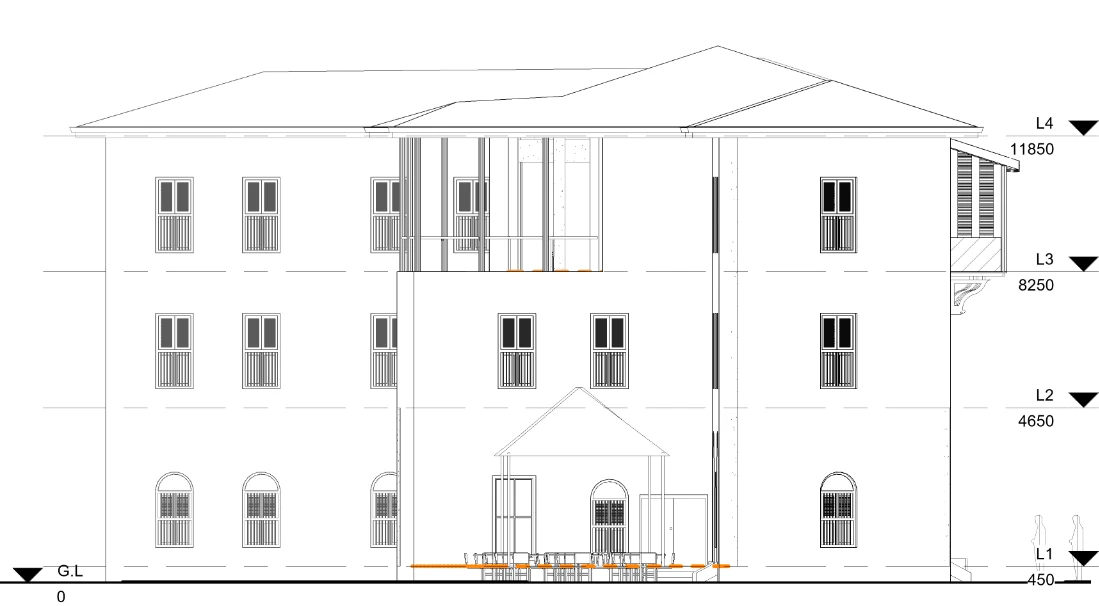

West Elevation — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 15West Elevation

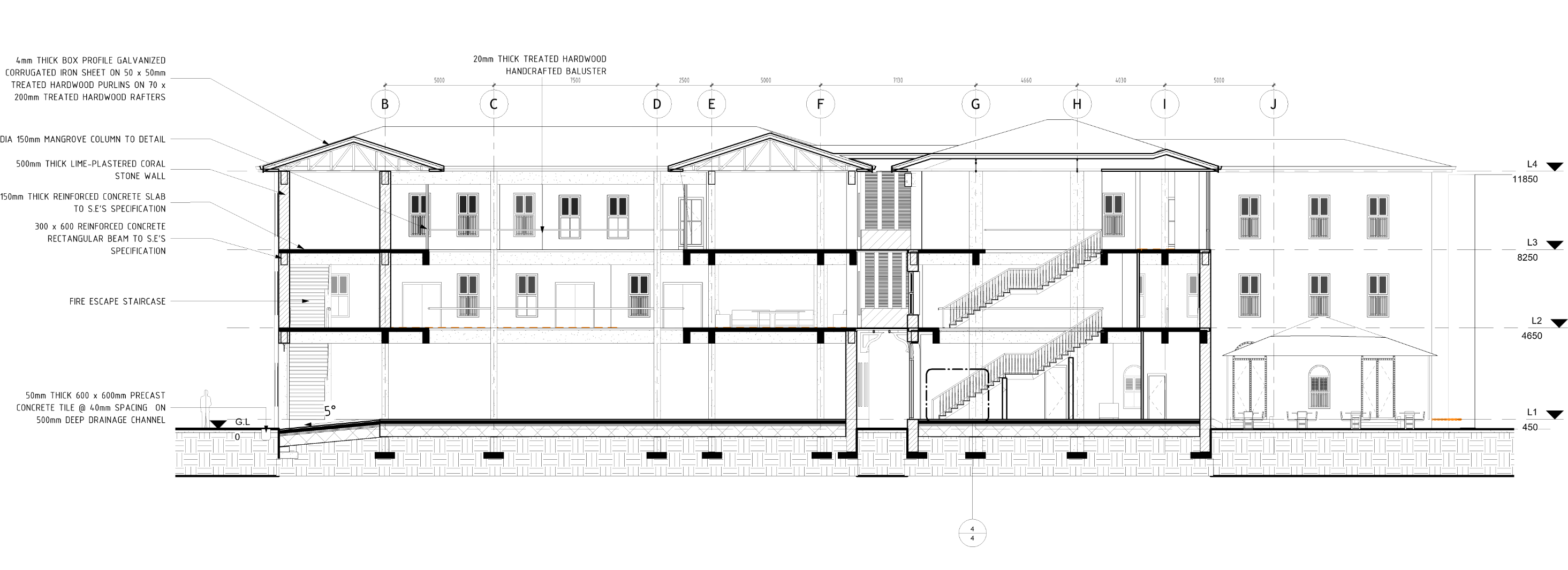

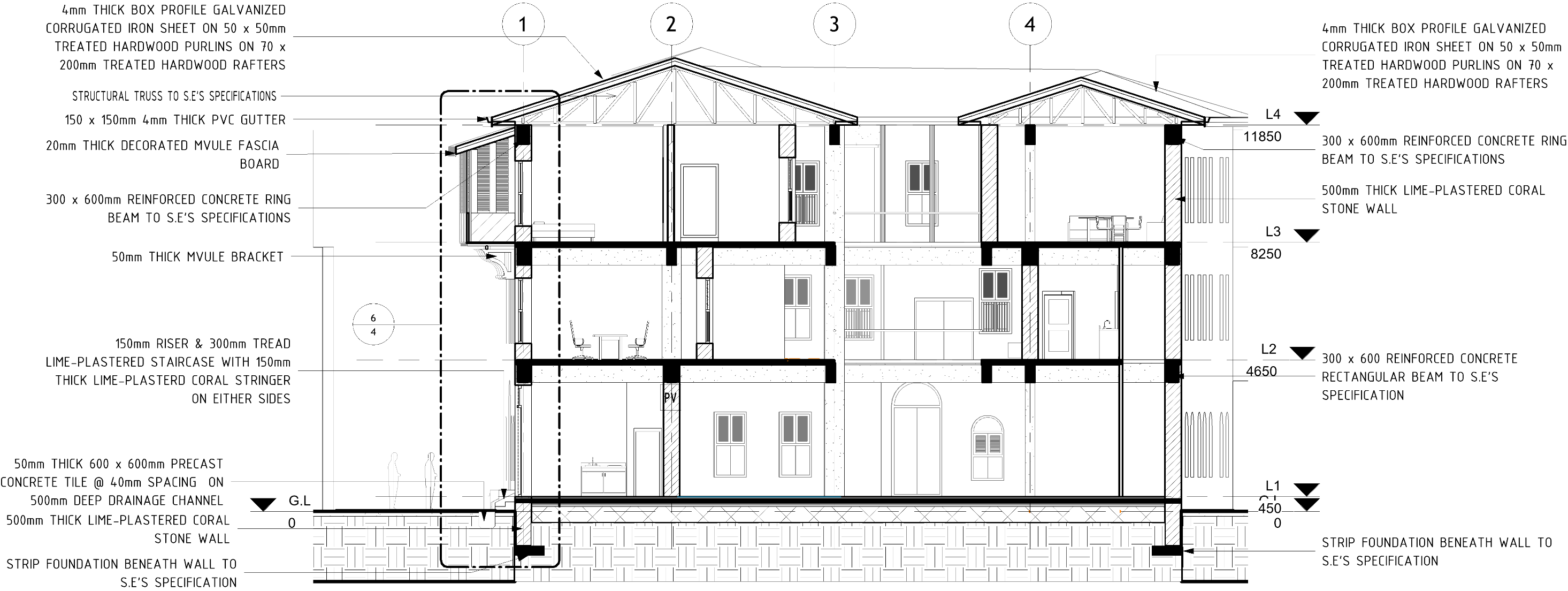

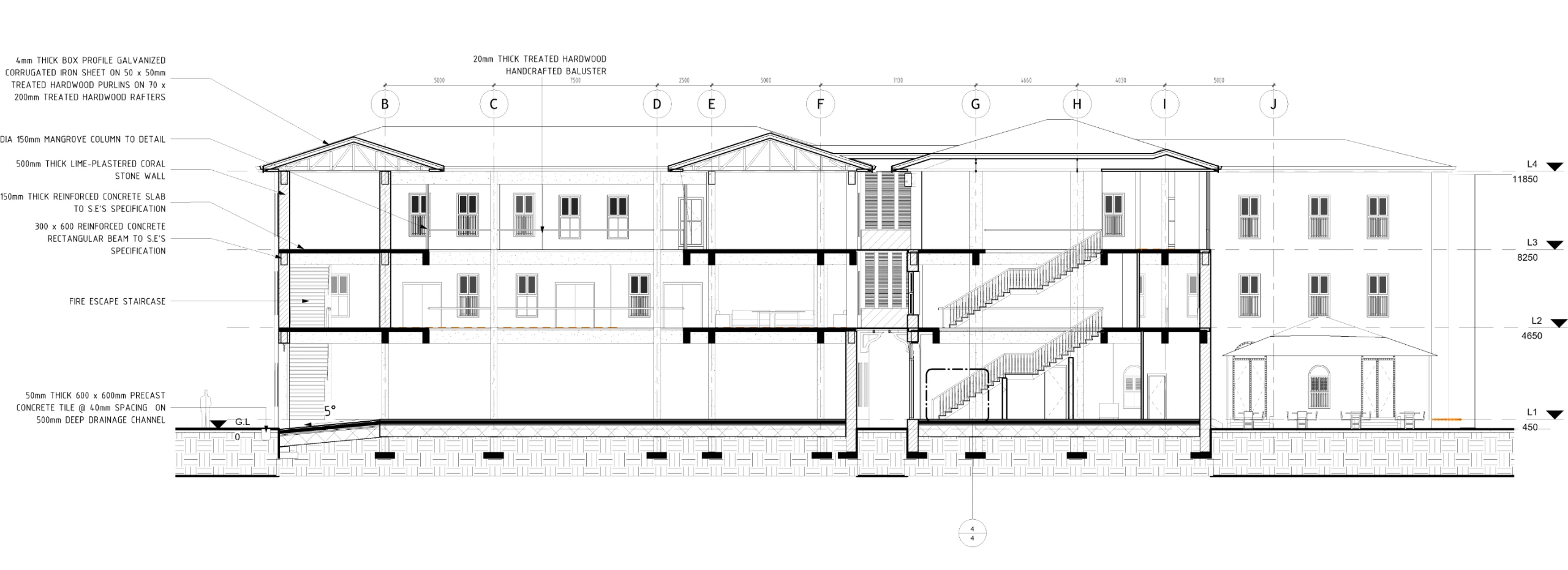

Section 1 — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 16Section 1

Section 2 — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 17Section 2

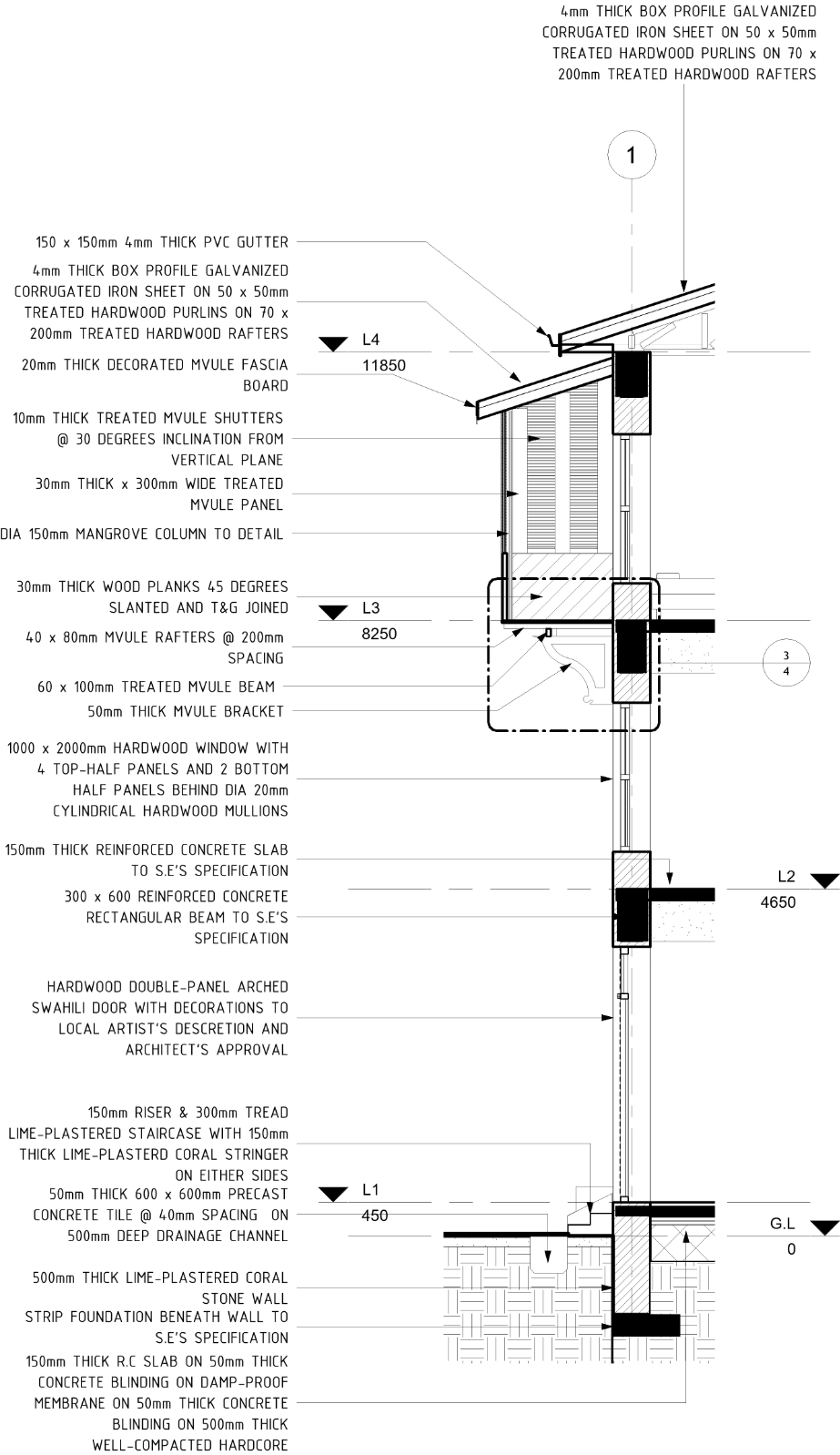

Wall part section — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 18Wall part section

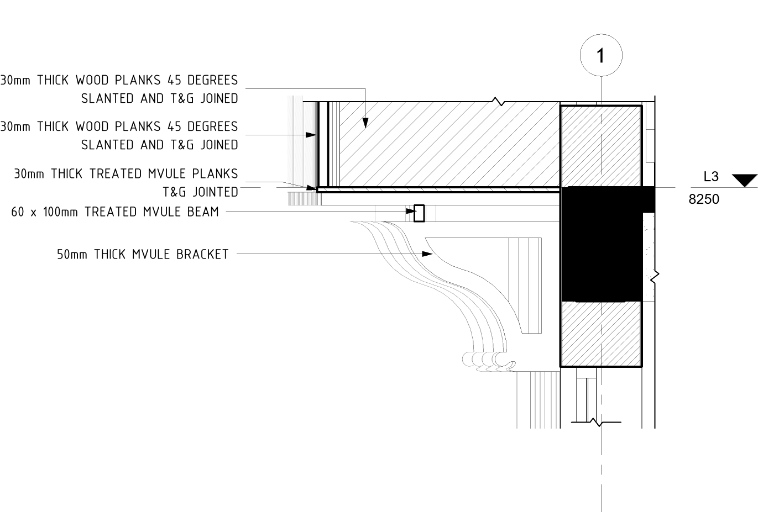

Balcony part section — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 19Balcony part section

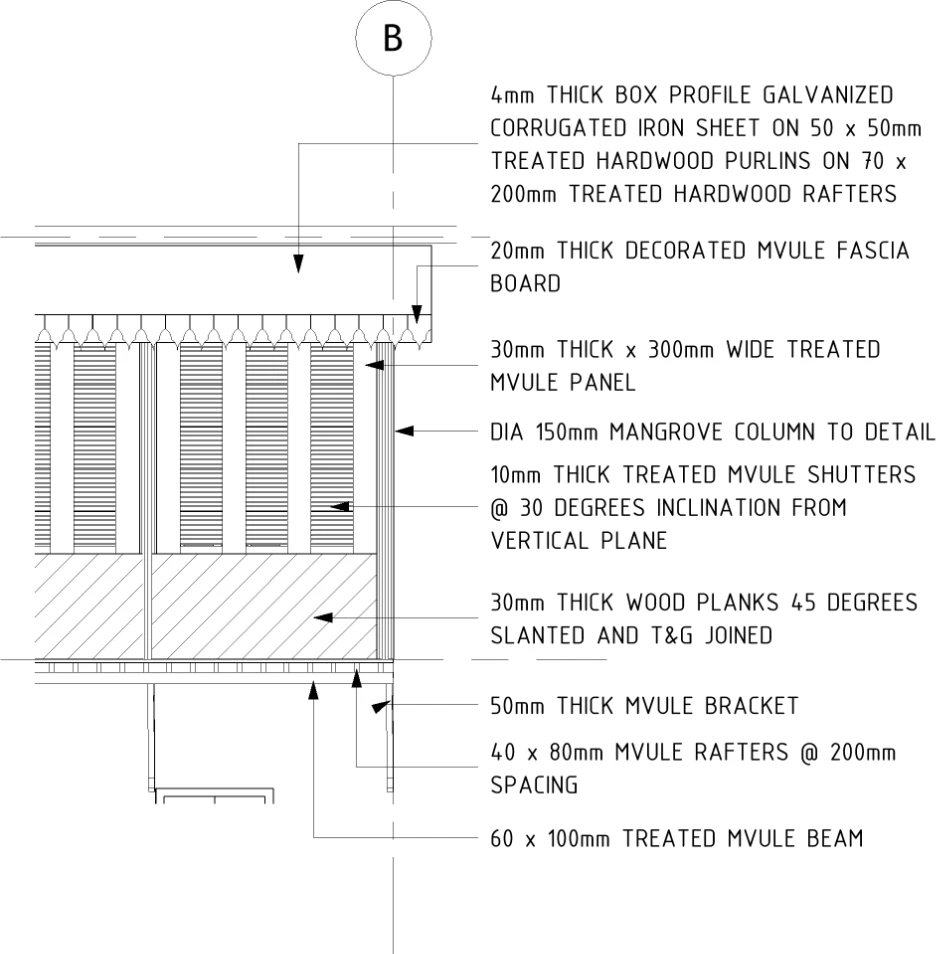

Balcony part elevation — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 20Balcony part elevation

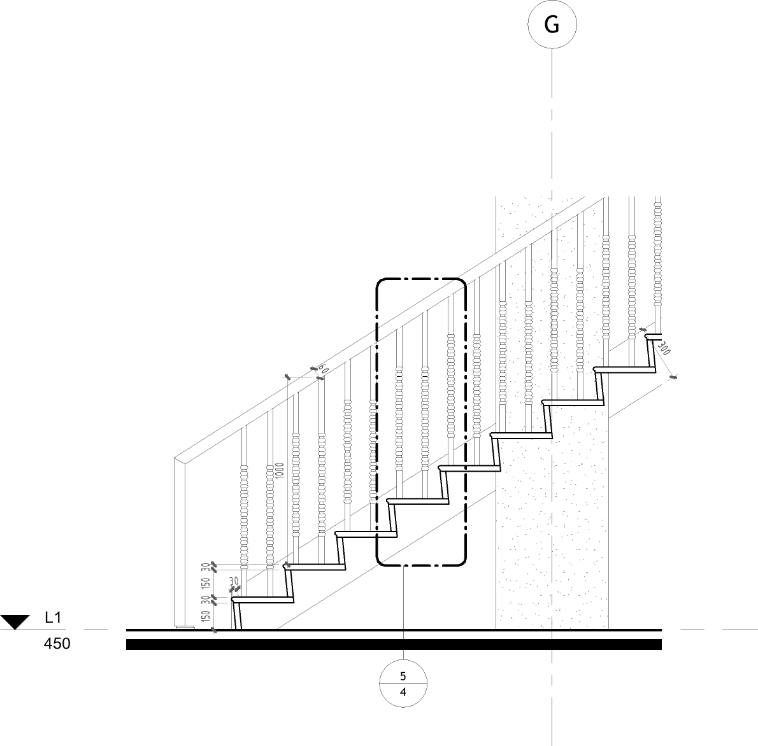

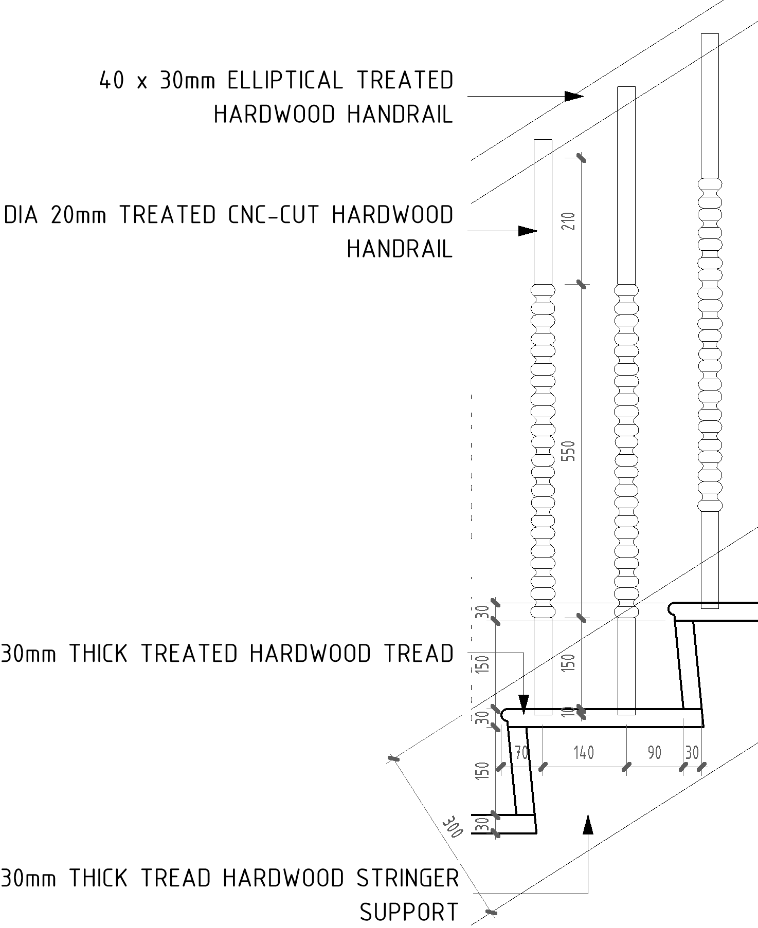

Staircase section — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 21Staircase section

Balustrade detail — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 22Balustrade detail

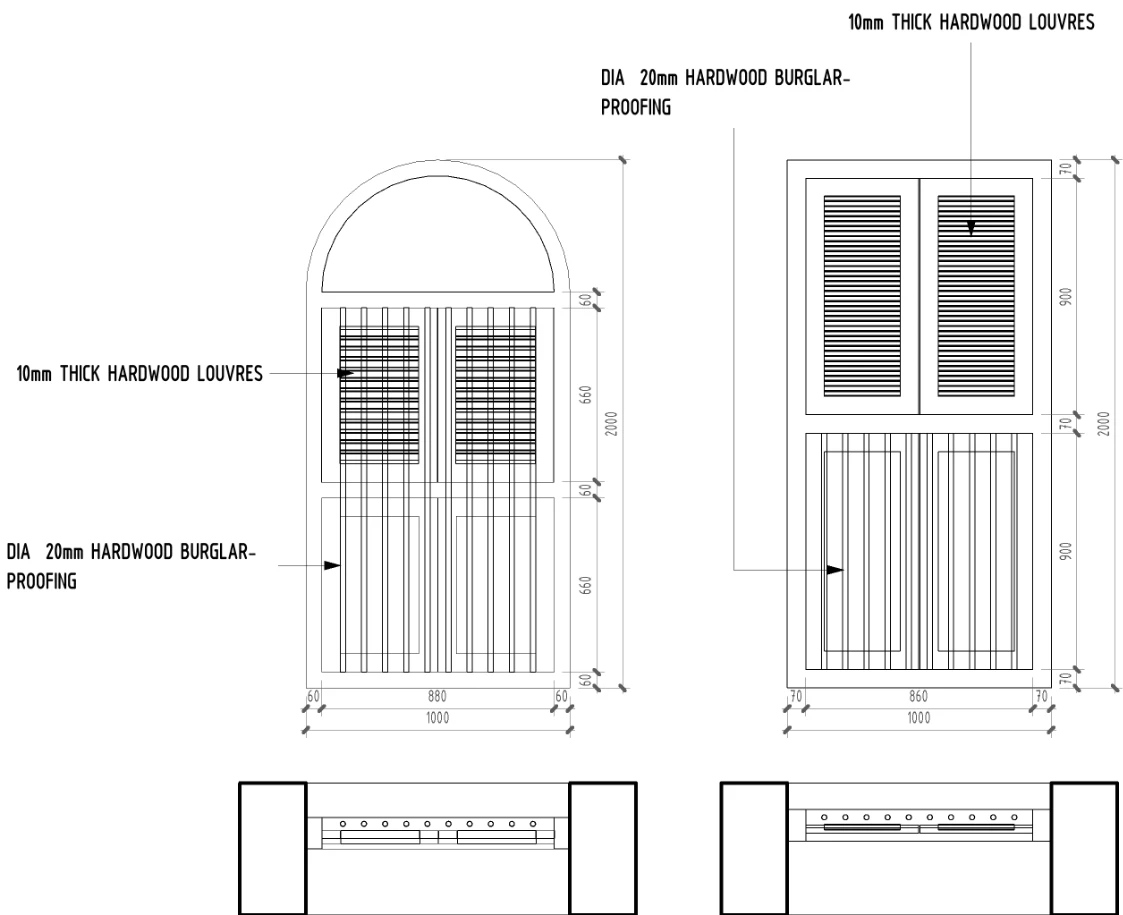

Window designs — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 23Window designs

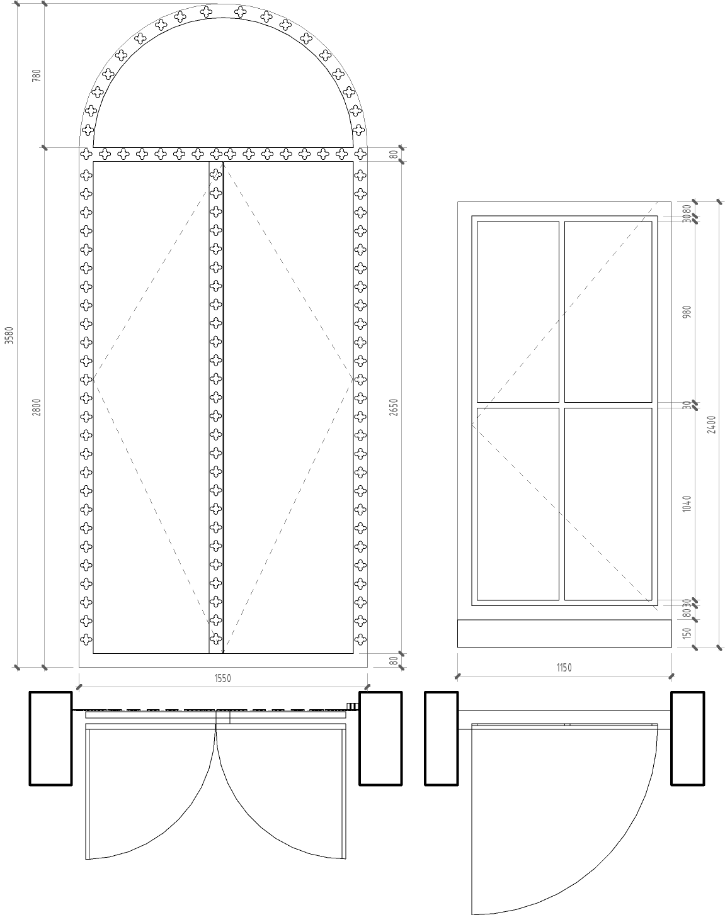

Door designs — Mombasa Old Town Swahili Conservation, Old Town Mombasa — 24Door designs
